160142A1
REDUCER SUM TRANSMISSION ASSEMBLY - tanpa motor penggerak jalan, Termasuk: Ref. 1 - 6.
. .160146A1
GEAR WHEEL SUM CARRIER ASSEMBLY A - roda gigi planet; Incl Ref 1 - 6.
1.160094A1
GEAR WHEEL SUM CARRIER A - roda gigi planet.
2.160004A1
SUN GEAR SUM GEAR - planet.
3.160278A1
BEARING, NEEDLE, 30mm ID x 40mm OD x 19.8mm W SUM NEEDLE - bearing.
4.160029A1
BESAR PIN SUM SHAFT - gear.
5.160291A1
THRUST WASHER SUM WASHER - dorong.
6.160109A1
PIN, ROLL SUM PIN - roll, khusus.
. .160144A1
HOLDER SUM CARRIER ASSEMBLY B - gear planetary, menggantikan 160144A1, carrier assembly B (menggantikan 164714A1), Meliputi: Ref. 7 - 12.
7.160095A1
GEAR WHEEL SUM CARRIER B - roda gigi planet.
8.160005A1
SUN GEAR SUM GEAR - planet.
9.160273A1
BENTUK JARINGAN, ID 35mm x 51mm OD x 24.8mm W SUM BEARING - roller.
10.160030A1
SHAFT SUM - gear.
11.160043A1
THRUST WASHER SUM WASHER - dorong.
12.160098A1
PIN, ROLL SUM PIN - roll, khusus.
. .160145A1
GEAR WHEEL SUM CARRIER ASSEMBLY C - gear planet, Meliputi: Ref. 13 - 20.
13.160207A1
PEMEGANG SUM CARRIER C - roda gigi planet.
14.160010A1
SUN GEAR SUM GEAR - planet.
15.160326A1
ROLLER SUM NEEDLE - bantalan.
16.160031A1
SHAFT SUM - gear
17.160037A1
BUSHING SUM RACE - bearing
18.160093A1
SUM COLLAR - penahan jarum
19.160044A1
THRUST WASHER SUM WASHER - dorong
20.160099A1
PIN, ROLL SUM PIN - roll, khusus
21.160007A1
PINION SUM GEAR - drive
22.160038A1
PLATE, THRUST SUM PLATE - dorong
23.160008A1
SUN GEAR SUM GEAR B - matahari
24.160009A1
SUN GEAR SUM GEAR C - sun Digantikan oleh nomor bagian: 155283A1
25.155643A1
RING, SNAP SUM RING - snap
26.NSS
TIDAK DIJUAL SEPARAT CON FLANGE - transmisi drive final
27.156144A1
BEARING, BALL, 240mm ID x 310mm OD x 32mm W SUM BEARING - bola
28.NSS
TIDAK DIJUAL SEPARAT CON HOUSING - bearing
29.160223A1
SHIM KIT SUM KIT - shim
30.160104A1
PIN SUM - dowel
31.863-16090
HEX SOC SCREW, M16 x 90mm, Cl 12.9 SUM BOLT - soket hex, 16-2,0 x 90 mm, kelas 12.9 Digantikan oleh nomor komponen: 2465671
32.863-18055
HEX SOC SCREW, M18 x 55mm, Cl 12.9 SUM BOLT - soket hex, 18-2,5 x 55 mm, kelas 12.9 Digantikan oleh nomor komponen: 108R018Z055N
33.156338A1
PLATE SUM - lock

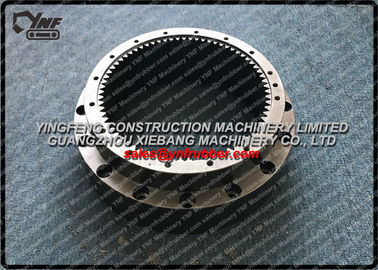

34.160006A1
PINION SUM GEAR - ring
. .160575A1
SEAL KIT SUM KIT - segel, menggantikan 160224A1, seal kit, Meliputi: Ref. 35 dan 36
35.155299A1
SEAL SUM - wajah digantikan oleh nomor bagian: LE01126
36.155183A1
O-RING SUM - seal
37.156200A1
BOLT, M14 x 95mm SUM BOLT - soket hex, 14-2,0 x 95 mm
38.155647A1
PIN PIN COTTER PIN SUM -
39.160220A1
SET OF PARTS SUM KIT - piring dorong
40.160325A1
COVER SUM - transmisi drive final
41.863-10020
HEX SOC SCREW, M10 x 20mm, Cl 12,9 CAS BOLT - soket hex, 10-1,5 x 20 mm, kelas 12.9
42.151033A1
PLUG SUM - hex socket, special
43.151026A1
PLUG SUM - port
44.151022A1
PLUG SUM - hex socket, special
45.892-10016
LOCK WASHER, M16 SUM WASHER - kunci, 16 mm
46.155578A1
PIN SUM - dowel
47.160002A1
COUPLING SUM - motor penggerak Digantikan oleh nomor komponen: 155257A1
48.738-1650
PIN LOCK, M6 x 50, Slotted CAS PIN - roll, 6 x 50 mm
