| Nama merek: | YNF |
| Nomor Model: | 31N4-17110K |
| MOQ: | 1 buah |
| Harga: | contact our sales |
| Waktu Pengiriman: | 3 hari kerja |
| Ketentuan Pembayaran: | T/T, Western Union, MoneyGram |

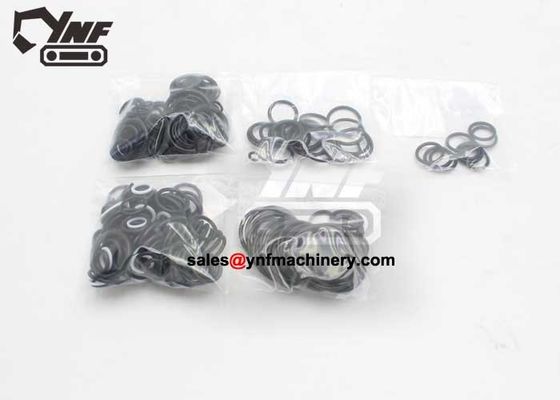

R160-7 Kit Segel Katup Kontrol Utama 31N4-17110K
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| N*. | @ | [1] | Swing Motor ASSY | |
| N*. | 31N4-10152 | [1] | Swing Motor ASSY | |
| *-1. | 31N4-10130 | [1] | Unit Swing Motor | |
| 1. | XKAY-00280 | [1] | Badan | |
| 1. | XKAY-00636 | [1] | Badan | |
| K2. | XKAY-00281 | [1] | SEAL-OIL | |
| 3. | XKAY-00282 | [1] | Berkas-Roller | |
| 4. | XKAY-00283 | [1] | RING-SNAP | |
| 5. | XKAY-00284 | [1] | SHAFT | |
| 5. | XKAY-02042 | [1] | SHAFT | |
| 6. | XKAY-00285 | [1] | BUSHING | |
| 7. | XKAY-00286 | [1] | PIN | |
| 7. | XKAY-00625 | [1] | PIN | |
| 8. | XKAY-00287 | [1] | Sepatu plat | |
| 9. | XKAY-00288 | [1] | KIT Rotary | |
| 9. | XKAY-00629 | [1] | KIT Rotary | |
| 9. | XKAY-02043 | [1] | KIT Rotary | |
| 911, tolong. | XKAY-00289 | [1] | BLOCK KIT-CYLINDER | |
| 911, tolong. | XKAY-00628 | [1] | BLOCK KIT-CYLINDER | |
| 911, tolong. | XKAY-02044 | [1] | BLOCK KIT-CYLINDER | |
| 911. | XKAY-00290 | [1] | Blok-silinder | |
| 911. | XKAY-00627 | [1] | Blok-silinder | |
| 911. | XKAY-02045 | [1] | Blok-silinder | |
| 9 - 12. | XKAY-00291 | [9] | SPRING | |
| 9-2. | XKAY-00292 | [1] | KIT PEMBANGKAT | |
| N9-21. | XKAY-00293 | [1] | Guide-Ball | |
| N9-22. | XKAY-00294 | [1] | PLATE-SET | |
| 9-3. | XKAY-00295 | [1] | KIT PISTON | |
| N9-31. | XKAY-00296 | [9] | PISTON ASSY | |
| 14. | XKAY-00297 | [2] | FRIKSI PLATE | |
| 15. | XKAY-00298 | [2] | PELAT | |
| 16. | XKAY-00299 | [1] | PISTON-BRAKE | |
| 16. | XKAY-00624 | [1] | PISTON-BRAKE | |
| 16. | XKAY-00626 | [1] | PISTON-BRAKE | |
| K17. | XKAY-00300 | [1] | O-RING | |
| K18. | XKAY-00301 | [2] | O-RING | |
| 19. | XKAY-00302 | [16] | SPRING | |
| 20. | XKAY-00303 | [1] | Cover-Back | |
| 20. | XKAY-00623 | [1] | Cover-Back | |
| 21. | XKAY-00304 | [1] | Jaring bantalan | |
| 22. | XKAY-00562 | [2] | PIN | |
| 23. | XKAY-00306 | [1] | Plak-Valve | |
| 26. | XKAY-00308 | [4] | Bolt-Wrench | |
| 27. | XKAY-00309 | [2] | PLUG | |
| K28. | XKAY-00141 | [2] | RING-BACK UP | |
| K29. | XKAY-00310 | [2] | O-RING | |
| 30. | XKAY-00311 | [2] | SPRING | |
| 31. | XKAY-00312 | [2] | CEK | |
| 32. | XKAY-00313 | [2] | Klep RELIEF ASSY | |
| 33. | XKAY-00314 | [2] | VLV ASSY-REACTIONLESS | |
| 34. | XKAY-00315 | [1] | Waktu Tunda Klep ASSY | |
| 35. | XKAY-00149 | [3] | Bolt-Wrench | |
| 36. | XKAY-00150 | [3] | PLUG | |
| K37. | XKAY-00256 | [3] | O-RING | |
| 38. | XKAY-00140 | [1] | PLUG | |
| 39. | XKAY-00317 | [1] | PLUG | |
| 40. | XKAY-01983 | [1] | Tingkat Gauge | |
| 40-1. | XKAY-01985 | [1] | PLUG | |
| 41. | XKAY-00319 | [1] | Flang | |
| K42. | XKAY-00320 | [2] | O-RING | |
| 43. | XKAY-00321 | [1] | NAME PLATE (Plat Nama) | |
| 44. | XKAY-00277 | [2] | RIVET | |
| 45. | XKAY-00322 | [2] | PLUG | |
| K46. | XKAY-00324 | [2] | O-RING | |
| K47. | XKAY-00247 | [2] | O-RING | |
| K48. | XKAY-00605 | [2] | RING-BACK UP | |
| *-2. | @ | [1] | Gear pengurangan ayunan | SEE 4090 |
| K. | XKAY-00325 | [1] | SEAL KIT | Lihat ILLUST |
| N. | @ | [AR] | Bagian-bagian yang tidak disuplai |
