| Nama merek: | YNF |
| Nomor Model: | 31Y1-20430 |
| MOQ: | 1 buah |
| Harga: | contact our sales |
| Waktu Pengiriman: | 3 hari kerja |
| Ketentuan Pembayaran: | T/T, Western Union, MoneyGram |
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| * | 31N5-50110 | [1] | Bentuk silinder, LH | |
| * | 31N5-50120 | [1] | Silinder ASSEMBLY,RH | |
| *-1. | 31Y1-20380 | [1] | BOOM CYL SUB ASSEMBLY | Tanpa pipa |
| 1. | 31Y1-20350 | [1] | TUBE ASSEMBLY | |
| 2. | 31Y1-04090 | [1] | ROD ASSEMBLY | |
| 3. | 31Y1-04120 | [1] | Kelenjar | |
| 4. | S732-080040 | [1] | BUSHING | |
| 5. | Y191-086000 | [1] | RING-SNAP | |
| K6. | Y200-080011 | [1] | SEAL-ROD | |
| K7. | Y180-080020 | [1] | RING-BACK UP | |
| K8. | Y240-080011 | [1] | Ring-buffer | |
| K9. | Y110-080011 | [1] | Dust WIPER | |
| 10. | Y190-094000 | [1] | RING-SNAP | |
| K11. | S631-105004 | [2] | O-RING | |
| K12. | S641-105002 | [1] | RING-BACK UP | |
| K13. | S641-105003 | [1] | RING-BACK UP | |
| 14. | 31YC-21050 | [1] | RING-CUSHON | |
| 15. | 31Y1-03660 | [1] | Piston | |
| K16. | S632-070004 | [1] | O-RING | |
| K17. | S642-070003 | [2] | RING-BACK UP | |
| K18. | Y420-115000 | [1] | SEAL-PISTON | |
| K19. | Y310-115000 | [2] | Pakaian cincin | |
| K20. | Y440-115000 | [2] | Dust-ring | |
| 21. | 31YC-61050 | [1] | Penguncian NUT | |
| 22. | S109-180604 | [9] | BOLT-SOCKET | |
| 28. | 31YC-11075 | [1] | BUSHING-PIN | |
| 29. | 31YC-11085 | [1] | BUSHING-PIN | |
| 30. | S700-075205 | [2] | BAB-BURUK SEAL | |
| 31. | Y000-070200 | [2] | BAB-BURUK SEAL | |
| 23. | 31Y1-04130 | [1] | BAND ASSEMBLY-LH | |
| 23. | 31Y1-04020 | [1] | BAND ASSEMBLY-RH | |
| 23-1. | 31Y1-04140 | [1] | BAND SUB ASSEMBLY, LH | |
| 23-1. | 31Y1-041R0 | [1] | BAND SUB ASSEMBLY-RH | |
| 23-2. | 31YC-32020 | [1] | BAND | |
| 23-3. | S071-022730 | [2] | U-BOLT | |
| 23-4. | S011-100352 | [4] | BOLT-HEX | |
| 23-5. | S201-101002 | [4] | Kepala kacang-hexagon | |
| 23-6. | S411-100002 | [8] | PEMBAHASAN-PEMBUAT | |
| 24. | 31Y1-20390 | [1] | PIPE ASSEMBLY-R,LH | |
| 24. | 31Y1-20400 | [1] | PIPE ASSEMBLY-R,RH | |
| 25. | 31Y1-20410 | [1] | PIPE ASSEMBLY-B, LH | |
| 25. | 31Y1-20420 | [1] | PIPE ASSEMBLY-B,RH | |
| K26. | Y171-019004 | [2] | O-RING | |
| 27. | S107-100454 | [8] | Kepala Bolt-Socket | |

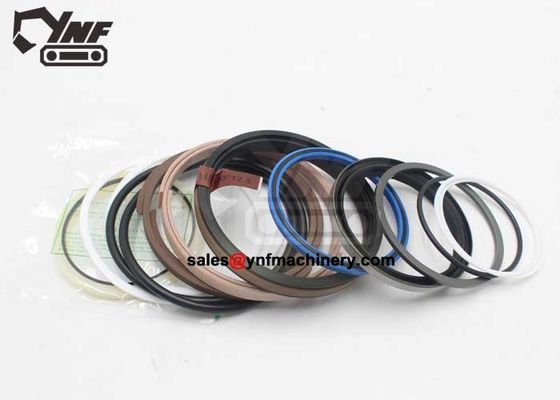

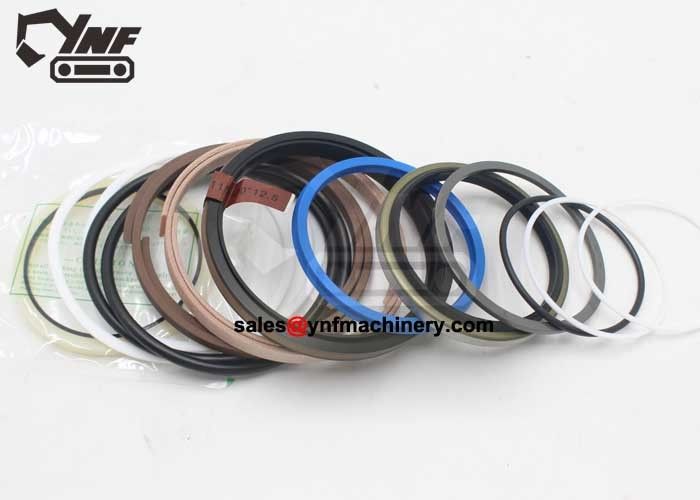

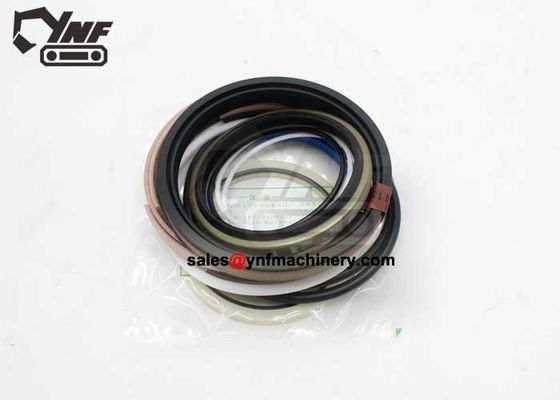

| K. | 31Y1-20430 | [1] | SEAL KIT |
Lihat ILLUST
|
