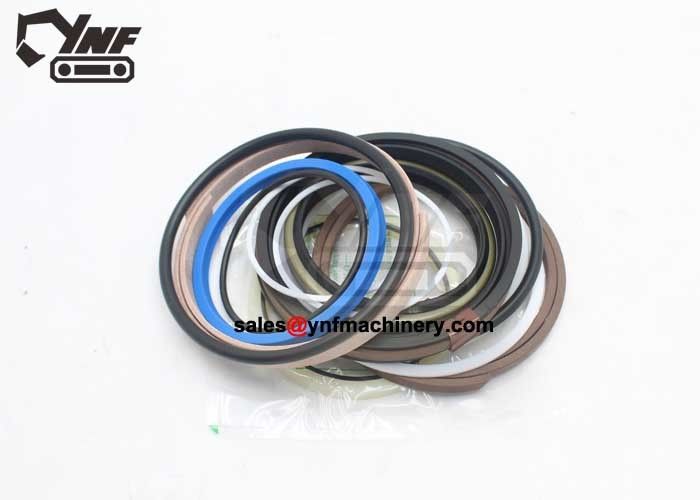

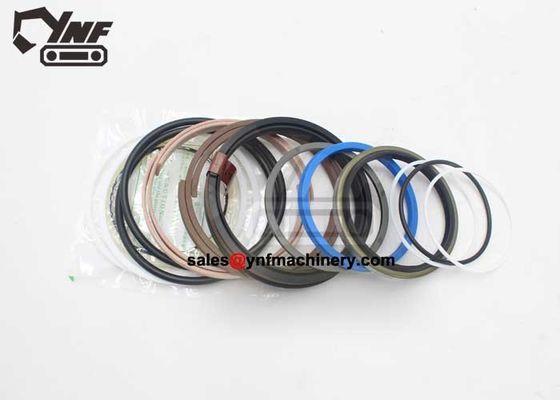

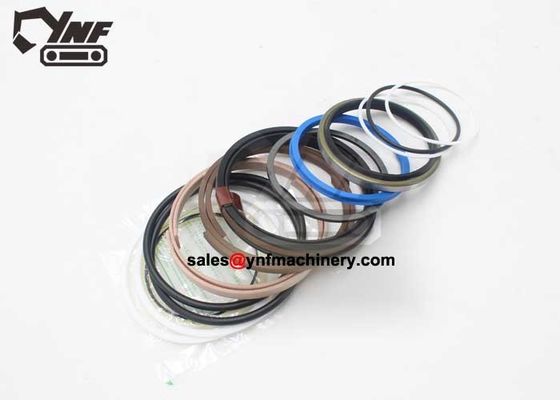

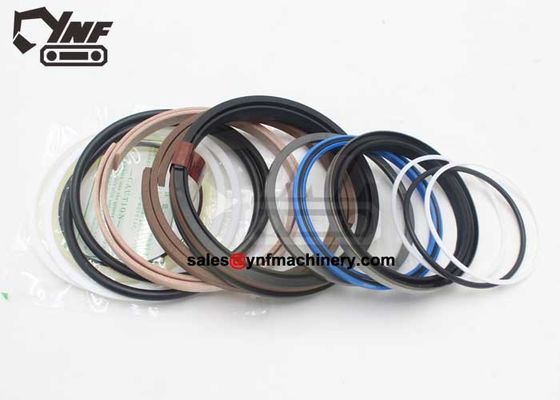

R160-7 Arm Hydraulic Cylinder Seal Kit 31Y1-20340 Fits Hyundai R160LC-7 R160LC-7A
Kategori:
Excavator Seal Kit
Harga:
contact our sales
Cara Pembayaran:
T/T, Western Union, MoneyGram
Spesifikasi
Nomor bagian:
31Y1-20340
Kode YNF:
YNF14102
Model:
R160LC-7 R160LC-7A
Aplikasi:
Penggali
Bahan:
Karet
Kemasan:
Kotak
Rentang Tekanan:
0-35MPa
Nama produk:
Kit Segel Ekskavator
Bentuk:
Disesuaikan
Ukuran:
Disesuaikan
Kecepatan:
≤15m/dtk
Kisaran Suhu:
-40 ℃ ~ + 120 ℃
Cahaya Tinggi:
R160-7 Arm Hydraulic Cylinder Seal Kit
,31Y1-20340 Kit Segel Silinder Hidraulik
,R160LC-7A Kit Segel Silinder Hidraulik
Perkenalan
R160-7 Arm Hydraulic Cylinder Seal Kit 31Y1-20340 cocok dengan Hyundai R160LC-7 R160LC-7A
Bagian-bagian pada grup BUCKET CYLINDER:
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
|---|---|---|---|---|
| * | 31N5-60110 | [1] | BUCKET CYL ASSY | |
| *-1. | 31Y1-20280 | [1] | BUCKET CYL SUB ASSY | Tanpa pipa |
| 1. | 31Y1-20290 | [1] | TUBE ASSY | |
| 2. | 31Y1-04410 | [1] | Rod Assy | |
| 3. | 31Y1-14700 | [1] | Kelenjar | |
| 4. | S732-080040 | [1] | BUSHING-DD2 | |
| 5. | Y191-086000 | [1] | RING-SNAP | |
| K6. | Y200-080011 | [1] | SEAL-ROD | |
| K7. | Y180-080020 | [1] | RING-BACK UP | |
| K8. | Y240-080011 | [1] | Ring-buffer | |
| K9. | Y110-080011 | [1] | Dust WIPER | |
| 10. | Y190-094000 | [1] | RING-SNAP | |
| K11. | S631-105004 | [2] | O-RING | |
| K12. | S641-105002 | [1] | RING-BACK UP | |
| K13. | S641-105003 | [1] | RING-BACK UP | |
| 14. | 31YC-21050 | [1] | RING-CUSHON | |
| 15. | 31Y1-03660 | [1] | Piston | |
| K16. | S632-070004 | [1] | O-RING | |
| K17. | S642-070003 | [2] | RING-BACK UP | |
| K18. | Y420-115000 | [1] | SEAL-PISTON | |
| K19. | Y310-115000 | [2] | Pakaian cincin | |
| K20. | Y440-115000 | [2] | Dust-ring | |
| 21. | 31YC-61050 | [1] | Penguncian NUT | |
| 22. | S109-180604 | [9] | BOLT-SOCKET | |
| 28. | 31YC-11081 | [2] | BUSHING-PIN | |
| 29. | Y000-070200 | [4] | BAB-BURUK SEAL | |
| 23. | 31Y1-03670 | [2] | BAND ASSY | |
| 23-1. | 31Y1-03680 | [1] | BAND SUB ASSY | |
| 23-2. | 31YC-31060 | [1] | BAND | |
| 23-3. | S011-100352 | [2] | BOLT-HEX | |
| 23-4. | S411-100002 | [2] | PEMBAHASAN-PEMBUAT | |
| 23-5. | 31YC-36010 | [1] | KELAMP-TUB | |
| 23-6. | S015-120502 | [1] | BOLT-HEX | |
| 23-7. | S411-120002 | [1] | PEMBAHASAN-PEMBUAT | |
| 24. | 31Y1-20320 | [1] | pipa ASSY-R | |
| 25. | 31Y1-20330 | [1] | Pipa ASSY-B | |
| K26. | Y171-019004 | [2] | O-RING | |
| 27. | S107-100454 | [8] | BOLT-SOCKET | |
| K. | 31Y1-20340 | [1] | SEAL KIT | Lihat ILLUST |
| Tempat Asal | Guangdong, Cina |
|---|---|
| Nama merek | YNF |
| Sertifikasi | ISO9001 |
| Nomor Model | 31Y1-20340 Hyundai R160LC-7, R160LC-7A, R170W-7, R170W-7A, R180LC-7, R180LC-7A |
| Jumlah pesanan minimum | Perintah persidangan yang dapat diterima |
| Harga | Negosiasi |
| Rincian kemasan | Kantong PP di dalam, kotak karton di luar |
| Waktu Pengiriman | 3-5 hari setelah pembayaran diterima (tidak termasuk hari libur umum) |
| Ketentuan Pembayaran | Western Union, L/C, T/T, MoneyGram, D/A, D/P |
| Kemampuan Penyediaan | 5000 keping per minggu |
- MODEL DIPERLAMAKAN: Kit segel ember suku cadang 31Y1-20340 untuk suku cadang excavator Hyundai R160LC-7
- PROPERTI MATERIAL: Tahan gesekan dan keausan, tahan cuaca, tahan minyak, tidak beracun, aman dan tahan lama, tahan tekanan tinggi dan rendah.
- PEMASANGAN GAMPANG: Bagian-bagian kit segel excavator YNF dibangun sesuai dengan spesifikasi dan pengujian OEM.
- Pengiriman cepat: Kit R160LC-7 Bucket Seal akan dikirim dari China dalam 1-3 hari oleh DHL/UPS/FEDEX/TNT dan 3-6 hari mungkin tiba.
- R160LC-7, R160LC-7A Bucket Cylinder# 31N5-60110
- 80mm Rod x 115mm Bor
- Termasuk Wiper, U seal, Buffer seal dan 4 pc Capped T seal
- Kit segel aftermarket
